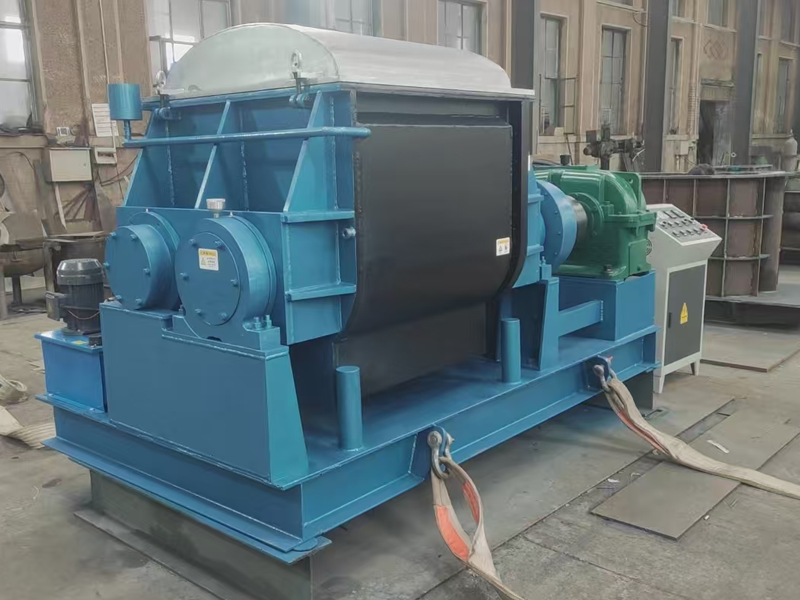

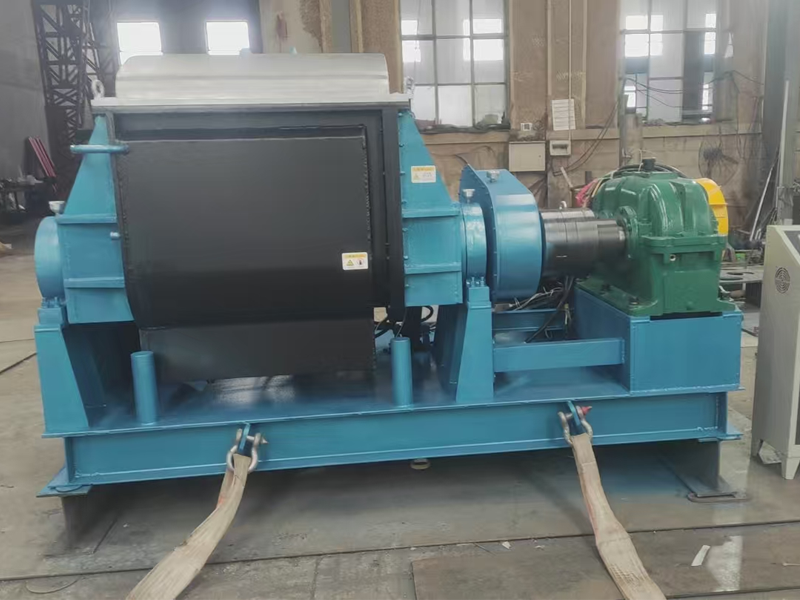

Color masterbatch kneading
Color masterbatch kneading machine in the field of plastic coloring, the masterbatch kneading machine ensures uniform color and stable performance of masterbatch products through advanced technologies such as efficient mixing, precise temperature control, and vacuum degassing. It is a key link in improving the quality of plastic products. Choosing a suitable kneading machine requires comprehensive consideration of production scale, material characteristics, and process requirements to achieve optimal production efficiency and product quality.
Color masterbatch kneading machine in the field of plastic coloring, the masterbatch kneading machine ensures uniform color and stable performance of masterbatch products through advanced technologies such as efficient mixing, precise temperature control, and vacuum degassing. It is a key link in improving the quality of plastic products. Choosing a suitable kneading machine requires comprehensive consideration of production scale, material characteristics, and process requirements to achieve optimal production efficiency and product quality.
Technical parameters of kneader |
|||||||||||
| Model | JR5L | JR10L | JR100L | JR300L | JR500L | JR1000L | JR1500L | JR2000L | JR3000L | JR4000L | JR5000L |
| Volume | 5L | 10L | 100L | 300L | 500L | 1000L | 1500L | 2000L | 3000L | 4000L | 5000L |
| Heating method | 1. Thermal oil heating 2.electric heating 3. steam heating | ||||||||||
| Host power（KW） | 0.75-1.5KW | 1.5-3KW | 4-11KW | 5.5-22KW | 11-45KW | 18.5-75KW | 45-90KW | 45-160KW | 45-160KW | 55-280KW | 90-355 |
| Screw motor power | 3—5.5 | 4—11 | 5.5—15 | 7.5—18.5 | 11—22 | 15—37 | 18.5—45 | 18.5—45 | 18.5—45 | ||
| Electric heating power | 1.8 | 4.2 | 12 | 18 | 36 | 45 | 54 | 72-84 | Can be customized according to temperature | ||
| vapor pressure | 0.2-0.4 | ||||||||||
| Load factor | ≦70% | ||||||||||
| Speed | 41/26 | 41/26 | 36/22 | 36/22 | 36/25 | 36/25 | 36/25 | 30/22 | 30/22 | 27/22 | |
| Degree of vacuum | ≦0.095Mpa | ||||||||||
| Discharge method | 1. Turning cylinder discharge, 2. Screw discharge, 3. Bottom discharge | 1. Screw discharge 2. lower discharge | |||||||||
| Equipment weight | 210-300 | 250-340 | 1100-1250 | 2000-2500 | 2800-3800 | 4200-4600 | 5200-5500 | 6400-6800 | 9000-9500 | 10000-11000 | 11000-13000 |
| Remarks | 1. Industry parameters are based on conventional design; 2. Customized according to material characteristics | ||||||||||
